Create a Database Report with CadActive Piping

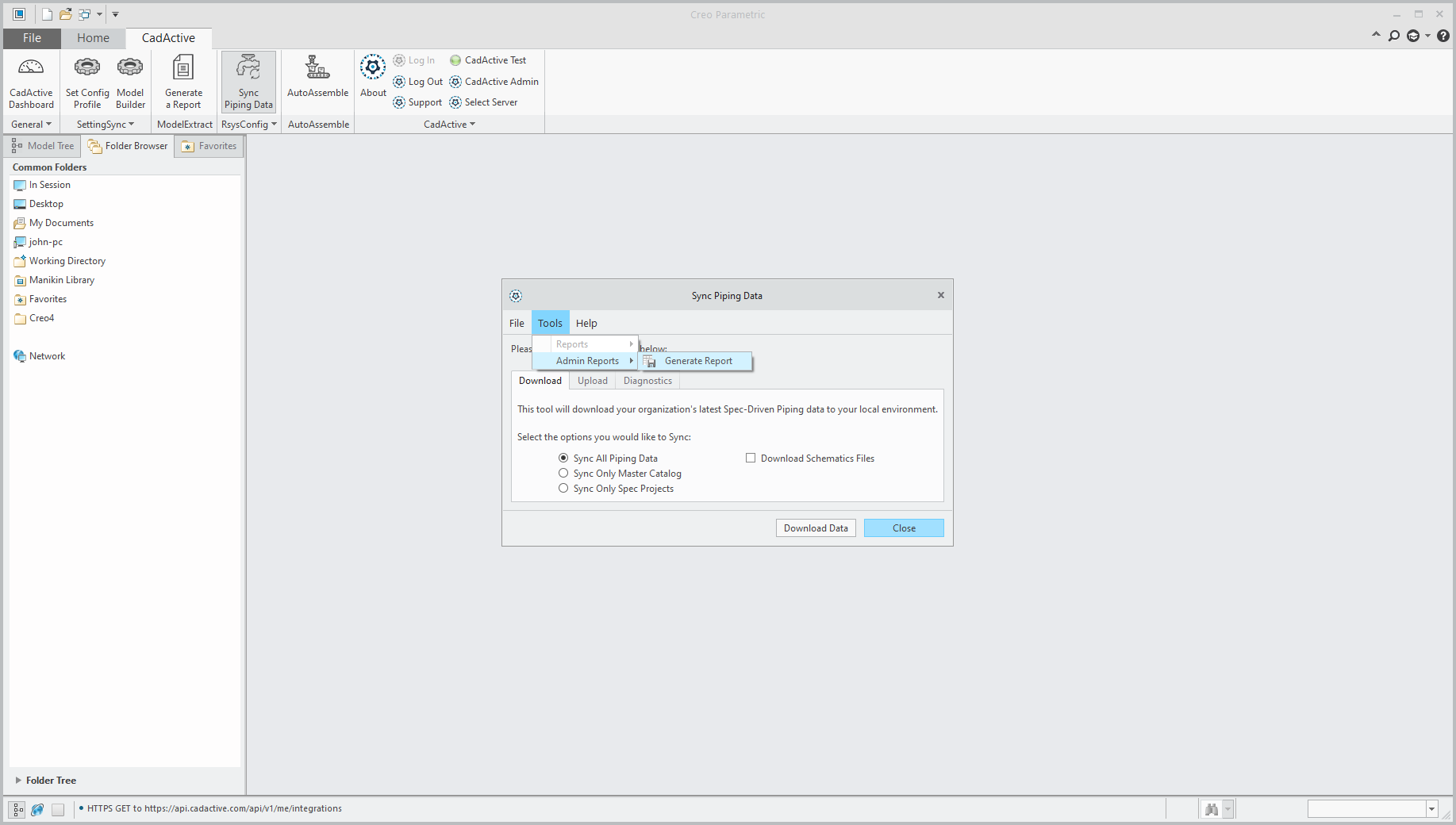

Most of the times, organizations with large piping databases are looking to run reports on what they have in RsysConfig. This is pretty easy to do, first go to Creo and log in. In the "Sync Piping Data", navigate to Tools->Admin Reports->Generate Report.

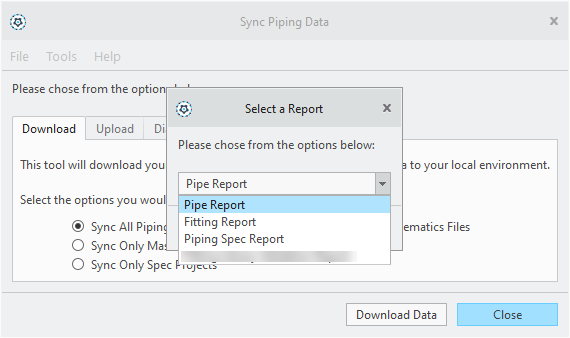

Next, select which report you would like to run. The Piping Spec Report references the Pipes and Fittings it contains, more information on which can be found in the Pipe Report and Fitting Report, respectively.

Next, select a name and directory where you want to save the CSV file that will download. The CSV will show information in the first four rows including a timestamp for when the report was ran. The Piping Spec report will reference Pipe and Fitting instance_id's, which will correspond to the instance_id's shown in the Pipe and Fitting Reports.

Attached is a sample piping report that comes already complete with INDEX-MATCH calculations. Paste your spec report, pipe report, and fitting report into the individual tabs and the calculations will flow into the spec report page in columns H-AI.
